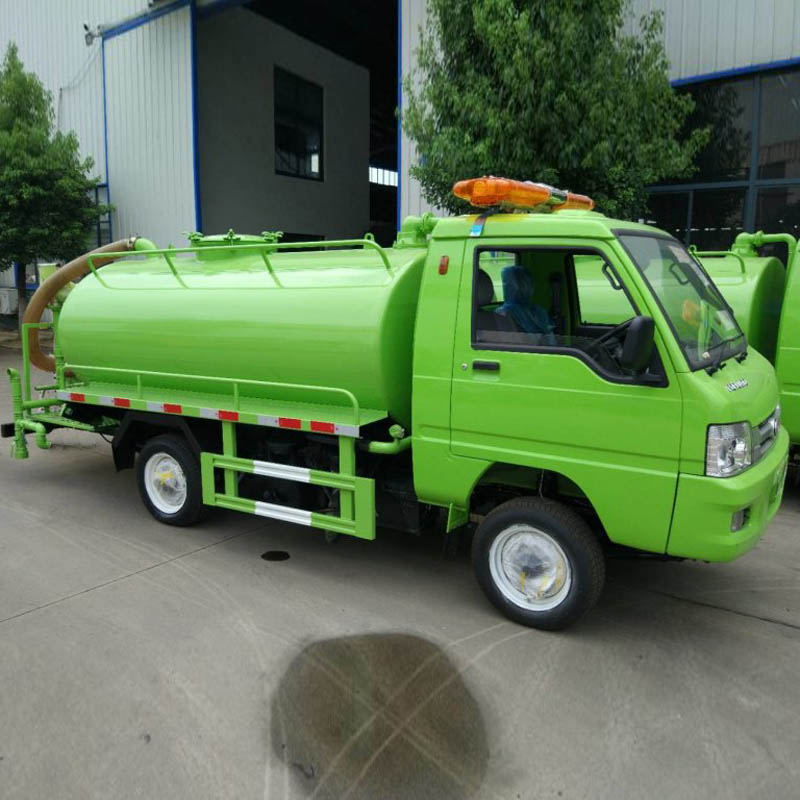

HLW5010GXEB微型吸粪车

Vehicle parameters

Vehicle Model

HLW5010GXEB

Vehicle Brand

FOTON

Overall dimensions

4470X1508X1905mm

Curb weight

1050kg

Tank dimensions

2000×1300×900mm

Tank volume

1800L

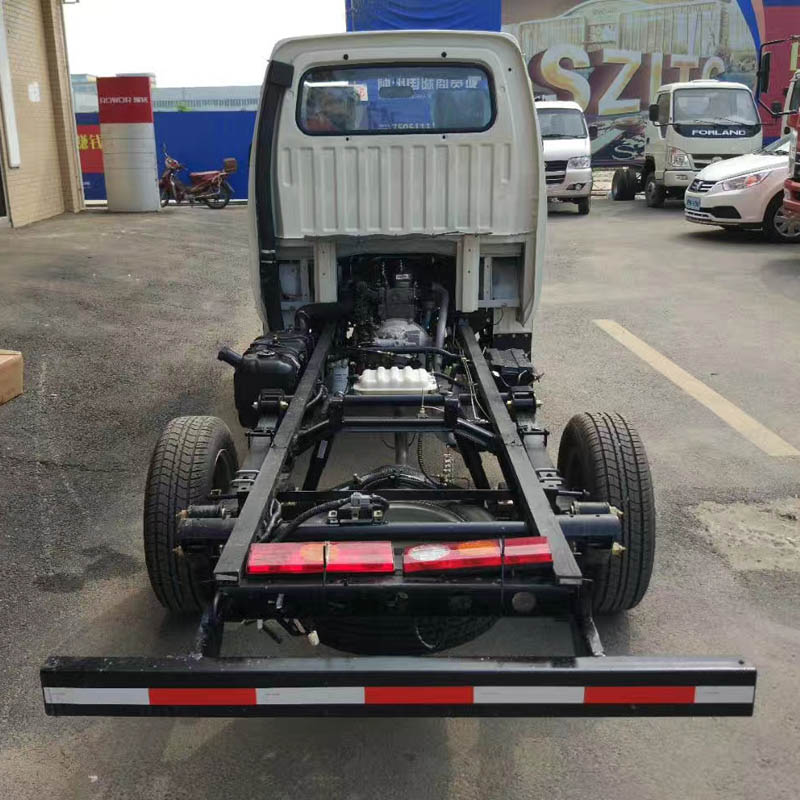

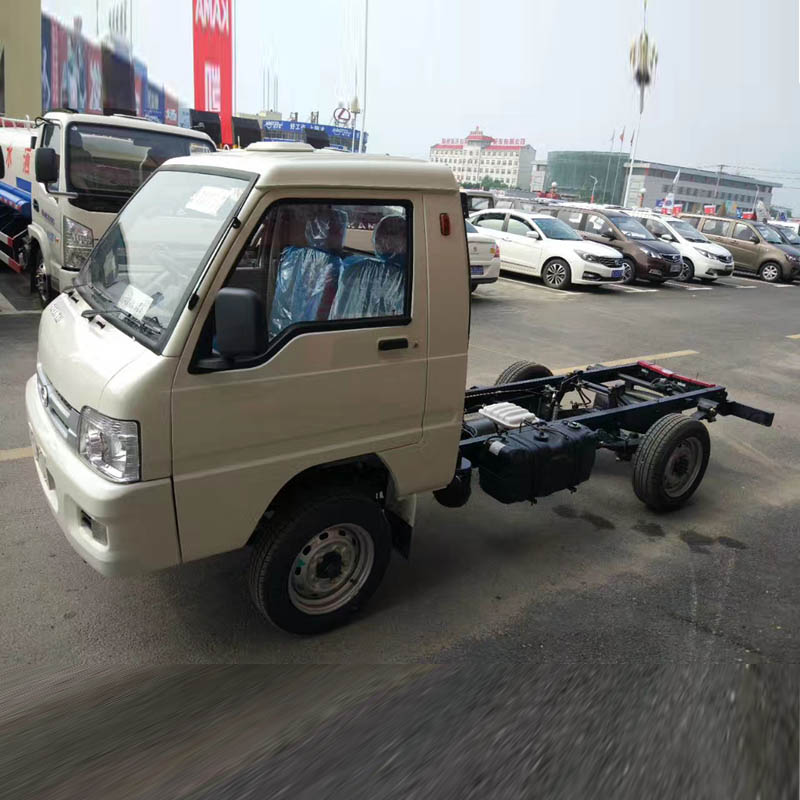

Chassis parameters

Chassis model

BJ1010V0JA3-2

Chassis brand

FOTON

Overall dimensions

4101x1475x1870mm

Wheel base

2456mm

Front/rear wheel track

1260/1260mm

Front/rear suspension

795/850mm

Approach/departure angle

33/24°

Maximum speed

80km/h

Chassis Manufacturer

BEIQI FOTON MOTOR CO.,LTD

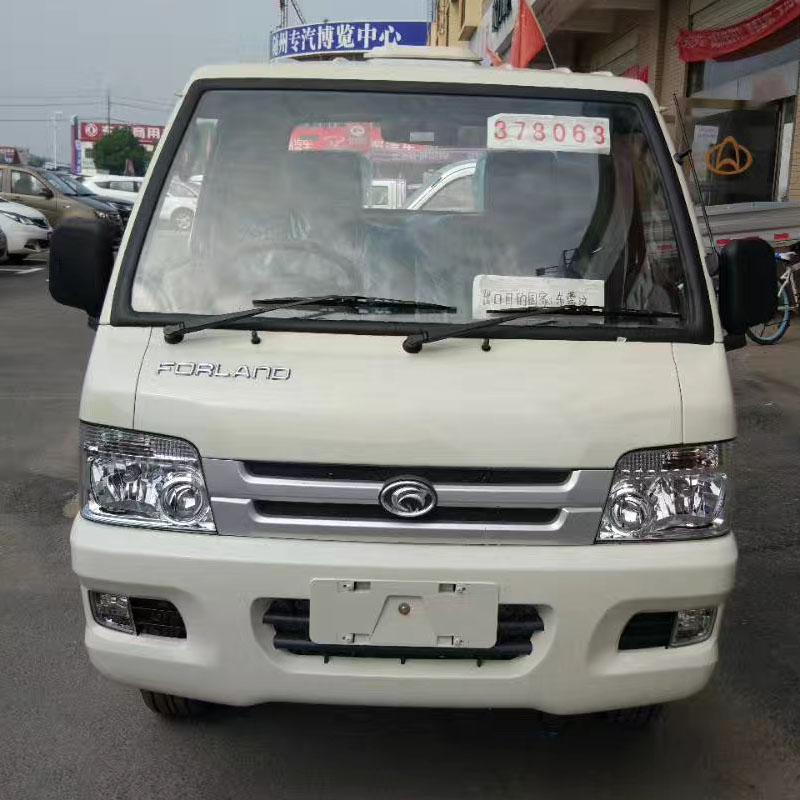

Cab

Configuration

Single row cab, electric power steering, power assisted clutch, electric control extinguishing, no air conditioner.

Color

White,other color is optional

Engine

Model

LL480QB

Emission

Euro 1

Rated power

39hp

Displacement

1809ml

Manufacturer

ShanDong HuaYuan LaiDong Internal-Combustion Engine Co.Ltd

Tire

Size

175R14 ( single rear tire)

Number

4 +1 nos

Leaf springs

Strengthening on the basis of the original

Minimum ground clearance

170mm

Front axle

1.0 tons

Rear axle

1.5 tons

Drive form

4X2

Steering wheel

Right hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Fecal suction tank structure parameters

Tank dimensions

2000×1300×900mmmm

Tank volume

1800L

Tank material

Carbon steel

Tank thickness

5mm

Color and Logo

Optional

Standard configuration

Chassis,sub frame,5mm carbon steel fecal tank,15 meters fecal suction pipe(2 pieces), rear coupling(1 piece), rotating arm, WEILONG vacuum pump,oil and gas separator, water vapor separator, anti overflow valve, observation tube, gravity flow valve.
