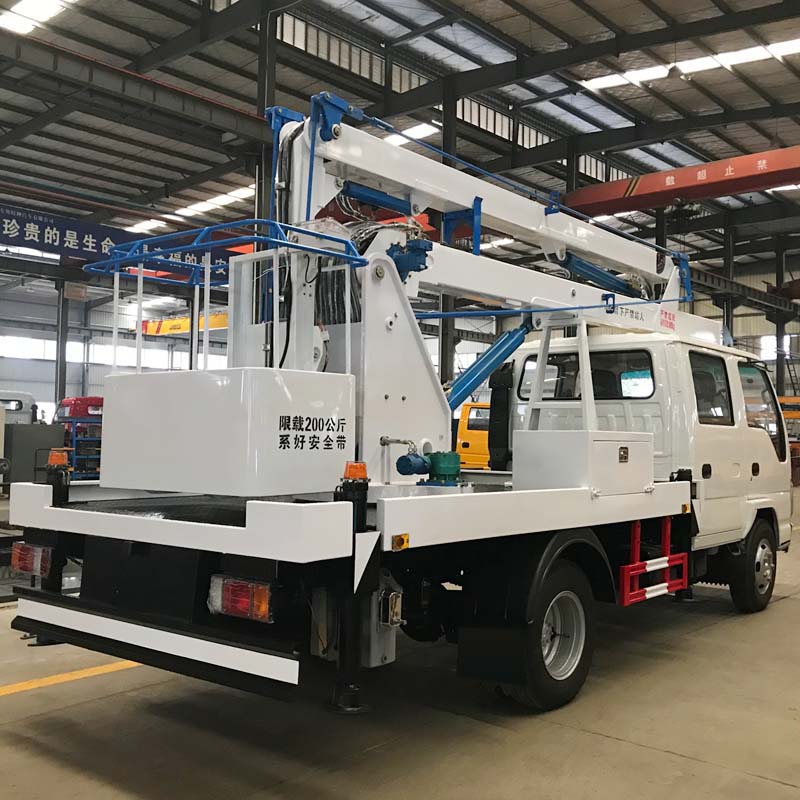

HLW5050JGKQ高空作业车

Vehicle parameters

Vehicle Model

HLW5050JGKQ

Vehicle Brand

HLW

Overall dimensions

7260×1990×3140mm

Curb weight

4365kg

Max operation height

12.0m

Chassis parameters

Chassis model

QL10703HWRY

Chassis brand

ISUZU

Overall dimensions

5900×1880×2220mm

Wheel base

3360mm

Front/rear wheel track

1504/1425mm

Front/rear suspension

1015/1525mm

Approach/departure angle

24/16°

Maximum speed

105km/h

Chassis Manufacturer

QingLing Motors (Group) Co., Ltd.

Cab

Configuration

100P, single row cab, allowable 5 passengers,car interior, air conditioner, USB radio interface, with oil brake vacuum booster pump

Color

Yellow, other color is optional

Engine

Model

4JB1CN

Emission

Euro 4

Type

4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine

Rated power

98hp,rated power speed 3400rpm

Displacement

2771ml

Manufacturer

Isuzu Engine (Chongqing) Co., Ltd.

Tire

Size

7.00R16 steel wire tire

Number

6+1 nos

Front axle

2.5 tons

Rear axle

4.8 tons

Drive form

4X2

Suspension

Multi leaf springs

Rated voltage

24V,DC

Transmissions

Isuzu MSB five speed transmission,5 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Aerial work truck structure parameters

Max operation height

12.0m

Max working platform height

10.0m

Max rotation angle

360°

Working platform rated loading

200kg

Color and Logo

Optional

Standard configuration

Chassis,sub frame,working bucket, hook, four legs, van body, up and down operation, hydraulic control, three knuckle arms, 360°rotation angle.
