Vehicle parameters

Vehicle Model

HLW5126TDYE

Vehicle Brand

HLW

Overall dimensions

8990X2480X3950mm

Curb weight

9360kg

Tank volume

10000L







Chassis parameters

Chassis model

EQ1126KJ1

Chassis brand

DONGFENG

Overall dimensions

7955x2462x2690mm

Wheel base

4700mm

Front/rear wheel track

1900/1800mm

Front/rear suspension

1205/2050mm

Approach/departure angle

20/13°

Maximum speed

90km/h

Chassis Manufacturer

Dongfeng Motor Company

Cab

Configuration

A row and a half deluxe cab(with sleeping berth),allowable 3 passengers

Color

white,other color is optional

Engine

Model

B190 33

Emission

Euro 3

Type

6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

190hp,rated power speed 2500rpm

Displacement

5900ml

Max.torque

640N.m

Bore x stroke

102x120mm

Manufacturer

Dongfeng Cummins Engine Co., Ltd.

Tire

Size

9.00-20 nylon tire

Number

6+1 nos

Frame

(250×80×7)mm,parts are double layers.

Fuel tank

160L,steel

Front axle

3.6T

Rear axle

9.0T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

Gearbox DF6S750, 6 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

Selective configuration

Steel wire tire,air conditioner

If there is a slight change in the chassis parameters above,please take the actual product as the standard



Upper structure parameters

Tank volume

10000L

Tank material

5mm manganese steel

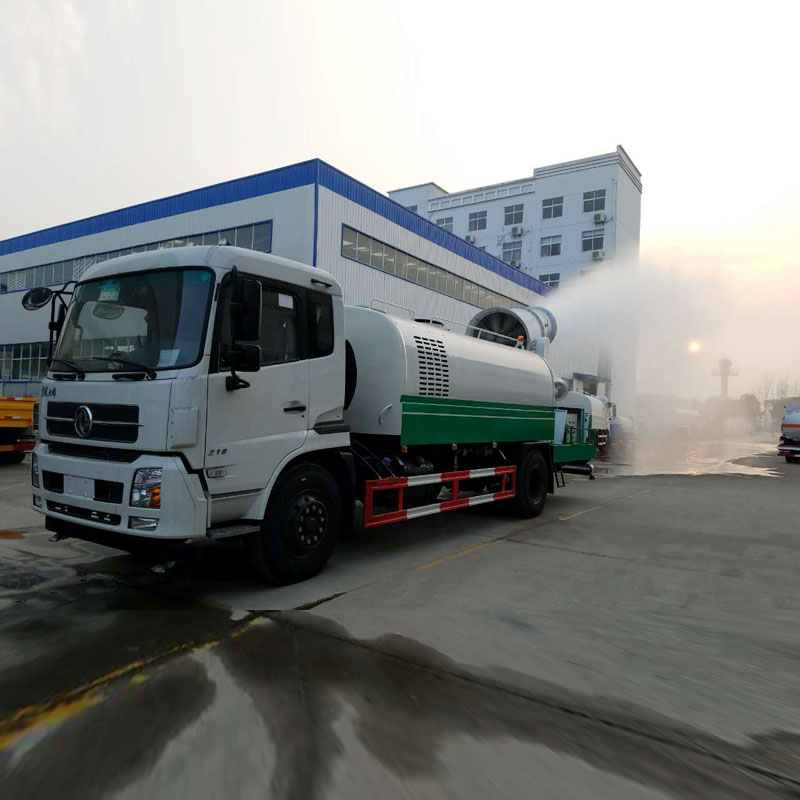

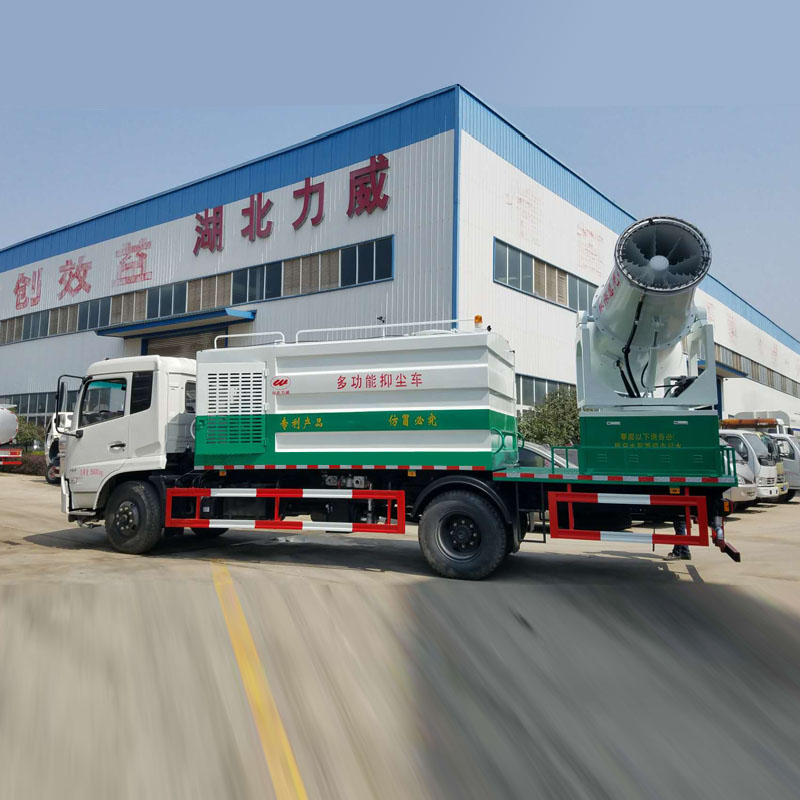

Maximum range of spray machine

120m

Maximum spray height

70m

Spray machine

30-120m optional

Color and Logo

Optional

Standard configuration

Chassis, sub frame, manganese steel water tank, PLC core control system, emergency stop button, fault indicator lamp,remote control, main air blower, spray machine.
