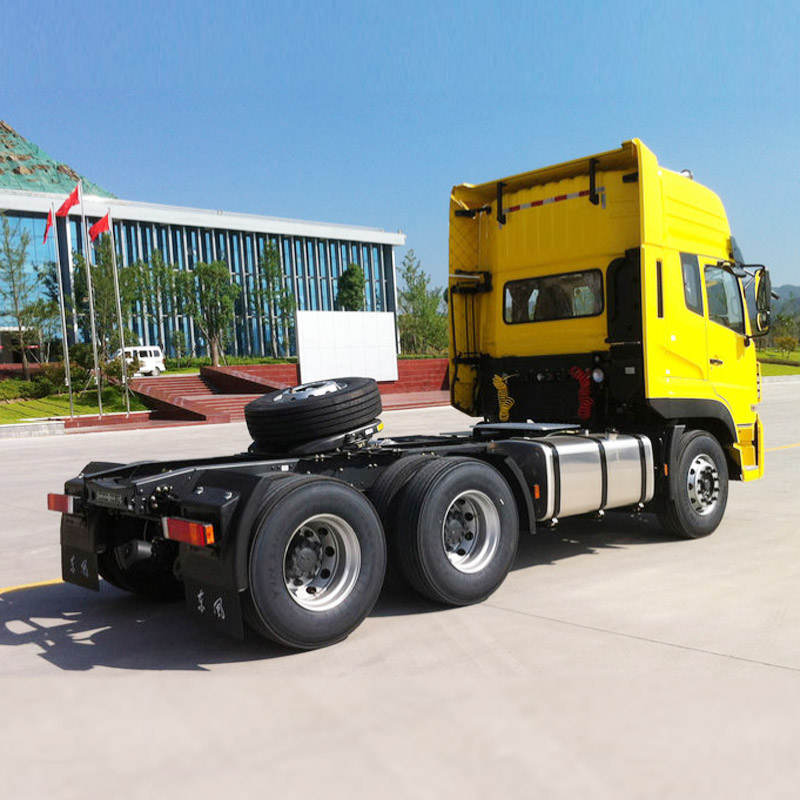

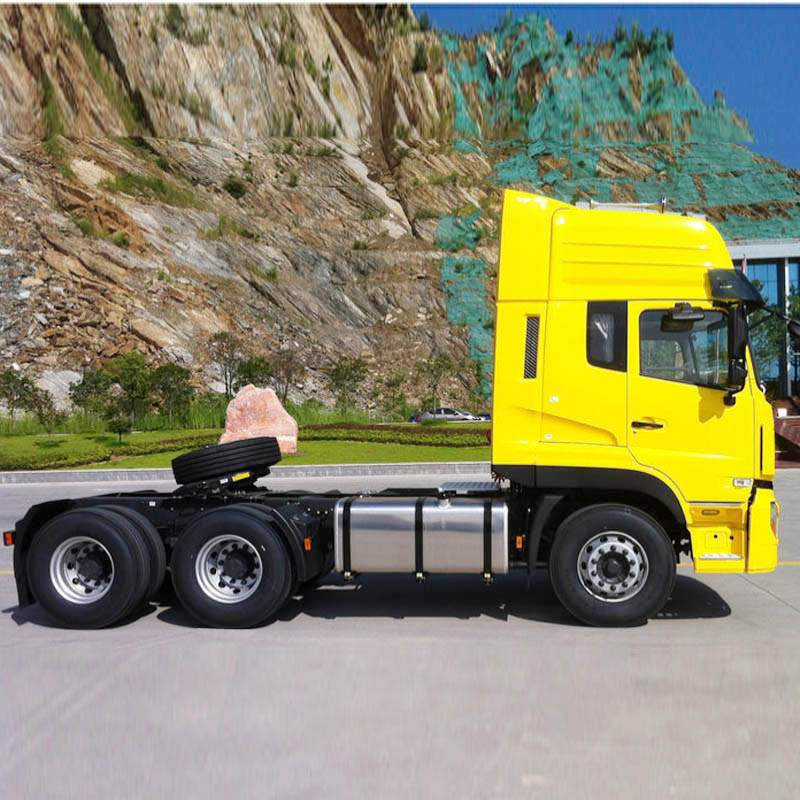

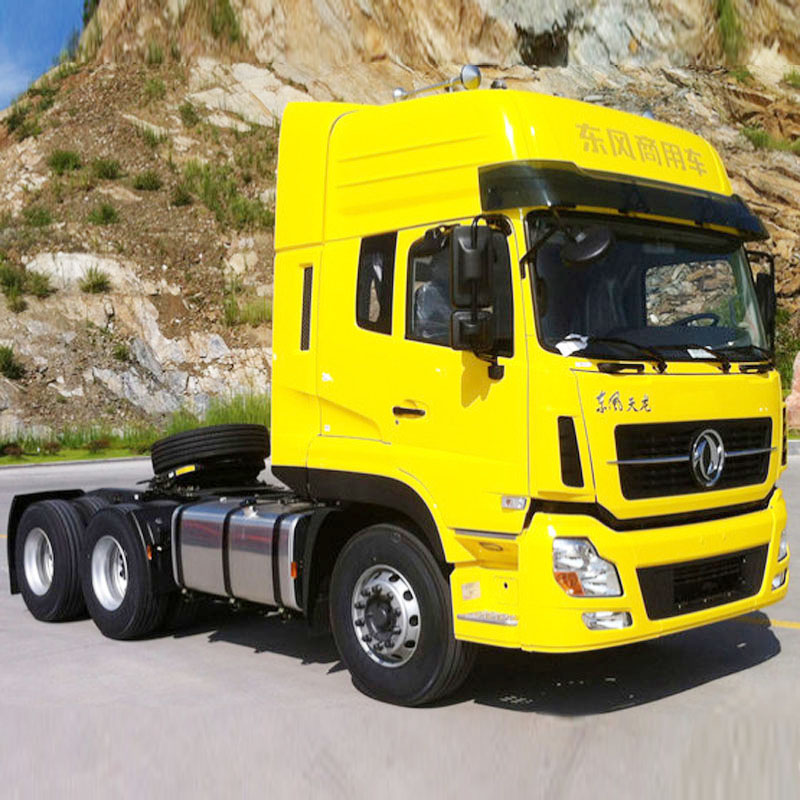

DFL4251A9 牵引车

Vehicle parameters

Chassis model

DFL4251A9

Chassis brand

DONGFENG

Overall dimensions

6800X2500X3800mm

Wheel base

3200+1350mm

Front/rear wheel track

2040/1820mm

Front/rear suspension

1500/810mm

Approach/departure angle

18/32°

Maximum speed

80km/h

Chassis Manufacturer

Dongfeng Automobile Co.,Ltd

Cab

Configuration

 A row and a half deluxe cab(with sleeping berth),allowable 3 passengers

Color

Violet, other color is optional

Engine

Model

L375 30

Emission

Euro 3

Type

6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, exhaust valve brake, diesel engine

Rated power

375hp, rated power speed 2200rpm

Displacement

8900ml

Max.torque

1480N.m

Manufacturer

Dongfeng Cummins Engine Co., Ltd.

Tire

Size

12R22.5 tubeless tire

Number

10 nos

Frame

300X（8+6）mm

Fuel tank

300L

Rear axle

13.0 tons

Drive form

6X4

Rated voltage

24V, DC,

Transmissions

12 speed forward 2 reverse.

Traction saddle

Φ90

Steering device

power assisted steering

Steering wheel

Left hand drive
