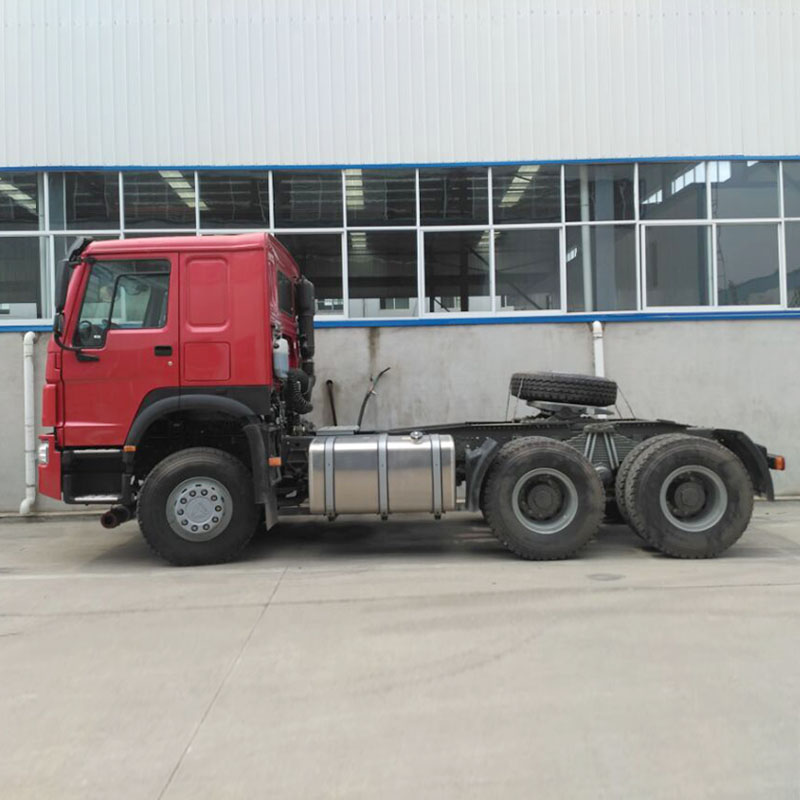

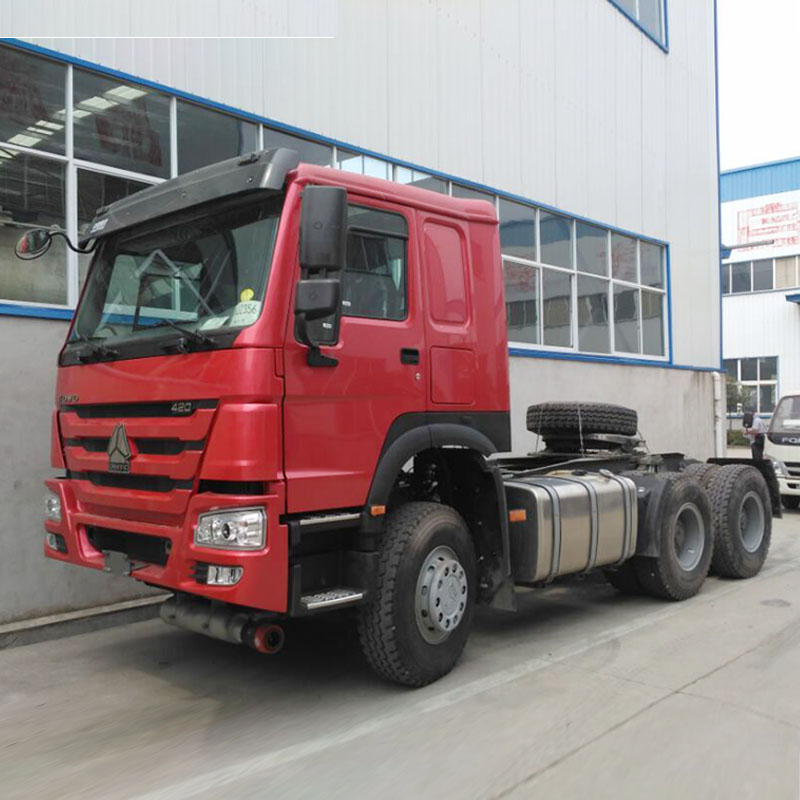

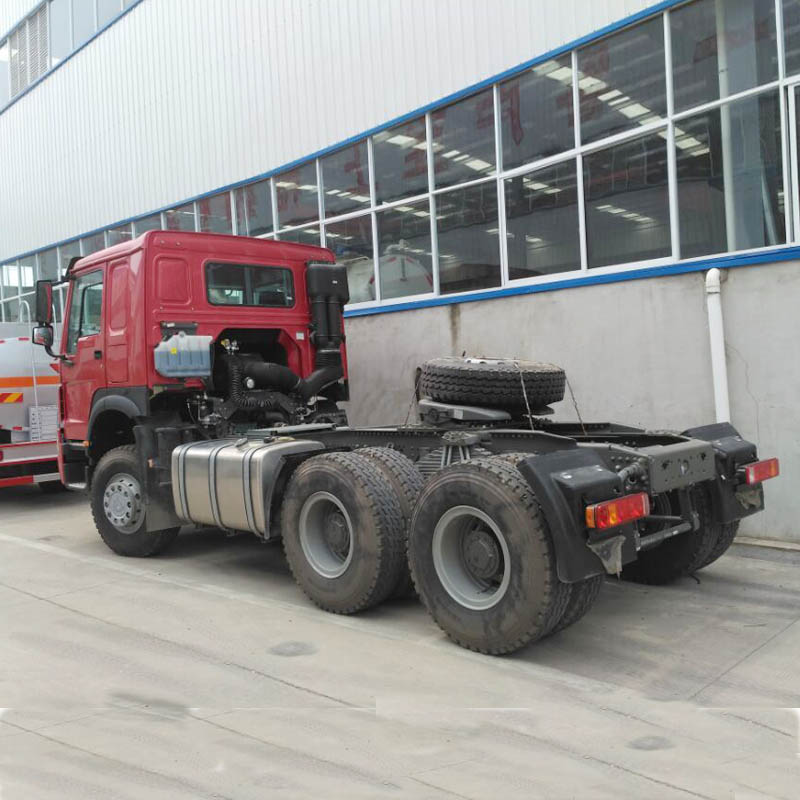

ZZ4257V3241W tractor truck

Vehicle parameters

Chassis model

ZZ4257V3241W

Chassis brand

SINOTRUK

Overall dimensions

6850X2550X3100mm

Wheel base

3200+1400 mm

Front/rear wheel track

2020/1830/1830mm

Front/rear suspension

1500/700 mm

Approach/departure angle

16/70°

Maximum speed

90km/h

Chassis Manufacturer

CHINA NATIONAL HEAVY DUTY TRUCK GROUP CO.,LTD.

Cab

Configuration

HOWO76 cab, one sleeping, with air-condition, electric air conditioner, electric rocking window machine, four point airbag damping cab

Color

Red, other color is optional

Engine

Model

D12.42

Emission

Euro2

Type

6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, direct Injection , diesel engine

Rated power

420hp

Manufacturer

CHINA NATIONAL HEAVY DUTY TRUCK GROUP CO.,LTD.

Tire

Size

315/80R22.5

Number

10+1 nos

Clutch

Φ430 diaphragm clutch

Fuel tank

500+500L

Front axle

HF 9, drum type

Rear axle

HC16, drum type

Drive form

6X4

Suspension

Leaf springs

Rated voltage

24V,DC

Transmissions

gearbox HW19710, 10 speed forward 2 reverse.

Traction saddle

Φ90

Steering device

Power assisted steering, steering machine (ZF8198)

Steering wheel

Left hand drive

Selective configuration

Warning light is mounted on the top of the cab, protective cover for F/R lights, protective cover for oil tank,color and LOGO as required

If there is a slight change in the chassis parameters above,please take the actual product as the standard
