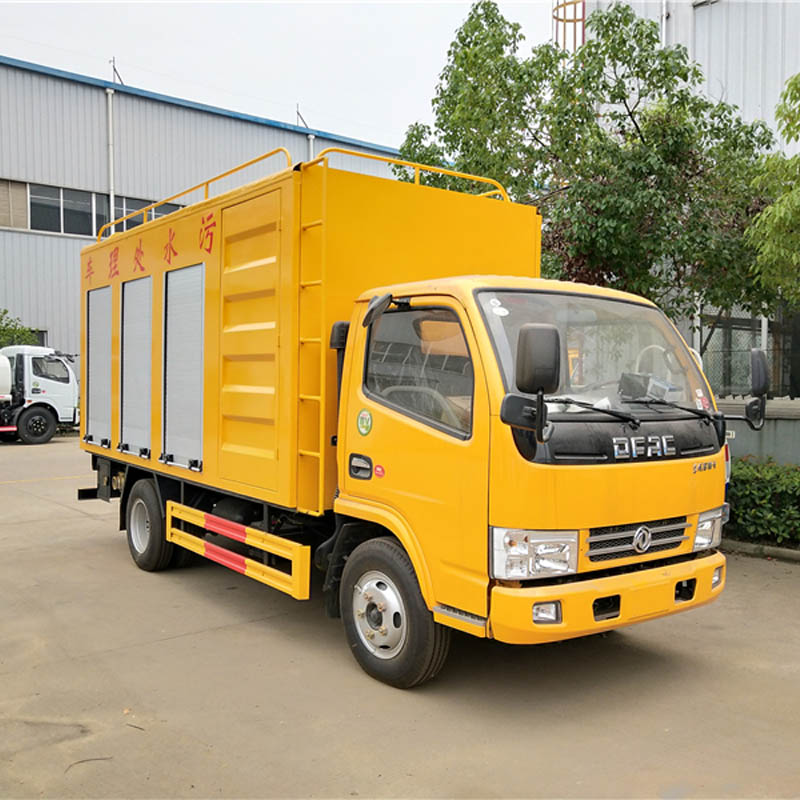

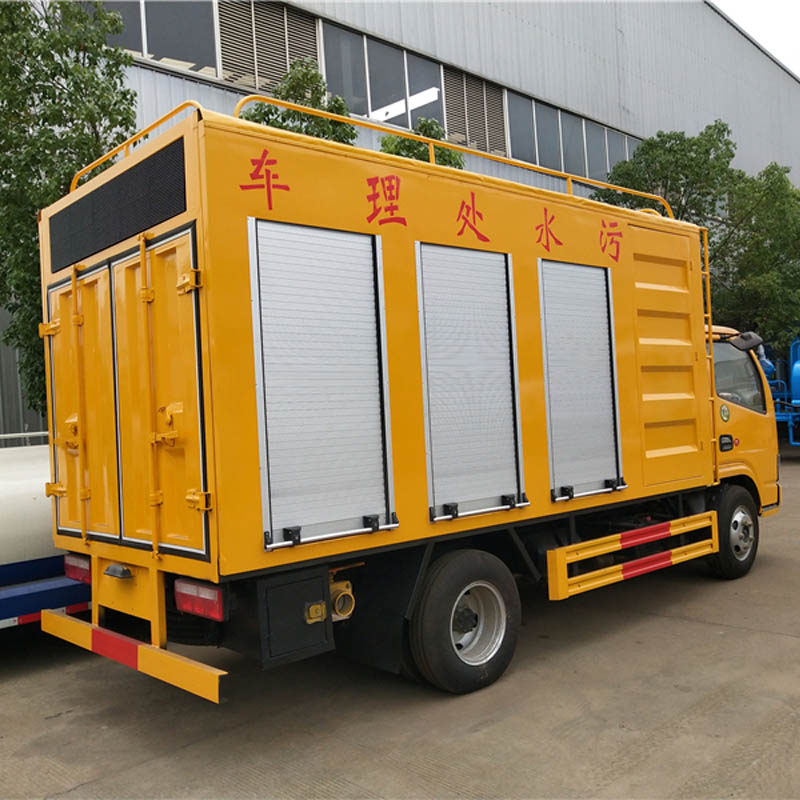

HLW5060TWCE sewage treatment truck

Vehicle parameters

Vehicle Model

HLW5060TWCE

Vehicle Brand

HLW

Overall dimensions

5995X2000X3050mm

Curb weight

4365kg

Chassis parameters

Chassis model

EQ1060TJ20D3

Chassis brand

DONGFENG

Overall dimensions

5820x1940x2080mm

Wheel base

3300mm

Front/rear wheel track

1506/1466mm

Front/rear suspension

1032/1488mm

Approach/departure angle

19/15°

Maximum speed

80km/h

Chassis Manufacturer

Dongfeng Automobile Co.,Ltd

Cab

Configuration

Single row cab,allowable 3 passengers

Color

White,other color is optional

Engine

Model

CY4102-C3F

Emission

Euro 3

Type

in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

95hp,rated power speed 3200rpm

Displacement

3856ml

Bore x stroke

102x118mm

Manufacturer

Dongfeng Chaoyang Diesel Power Co. Ltd.

Tire

Size

7.00R16 steel wire tire

Number

6+1 nos

Fuel tank

100L,steel

Front axle

2.0T

Rear axle

4.0T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

5 speed forward 1 reverse

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard

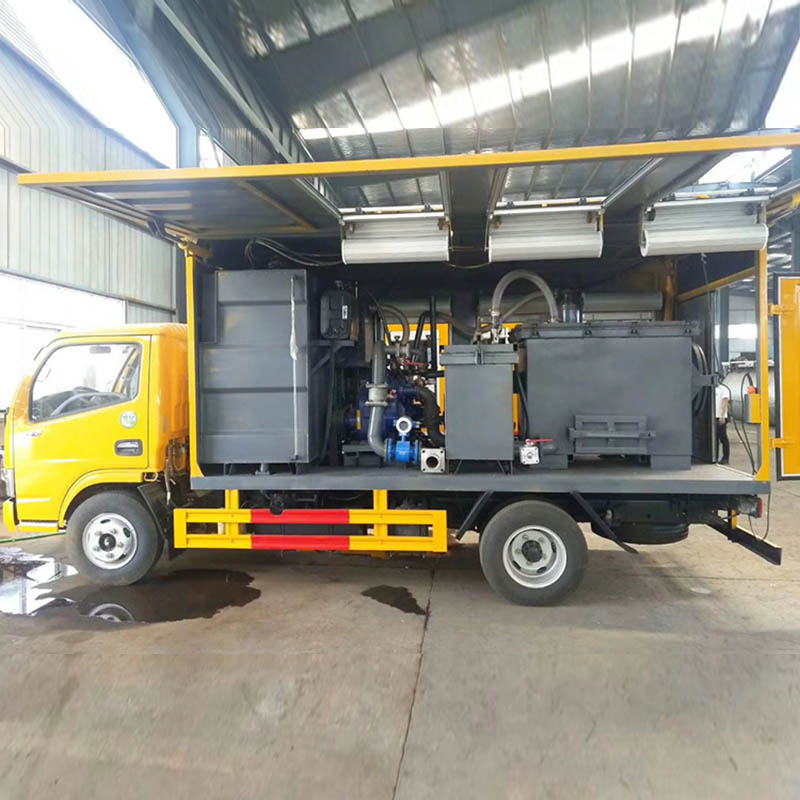

Sewage treatment parameters

The truck can turn sewage into clean water, dry debris and dry organic fertilizer. The whole vehicle is controlled by PLC, which saves time and labor.

1

Sandwich PTO

Power from the truck engine

2

Auxiliary generator

6.5KW, three-phase 380V diesel generator. 30KW is optional.

3

Rotor pump

6-65m3/h,adjustable

4

Medicament box

Automatic mixing, stainless steel material

5

Cache box

Stainless steel material

6

Flocculation reactor

Double mixing mechanism, stainless steel material

7

Dehydrator

Solid 150kg/h, sewage 15m3/h

8

Electric cabinet

Manual or automatic

9

Medicament

Flocculant

10

High pressure cleaning pump

16-21MPa, 130-170L/min
