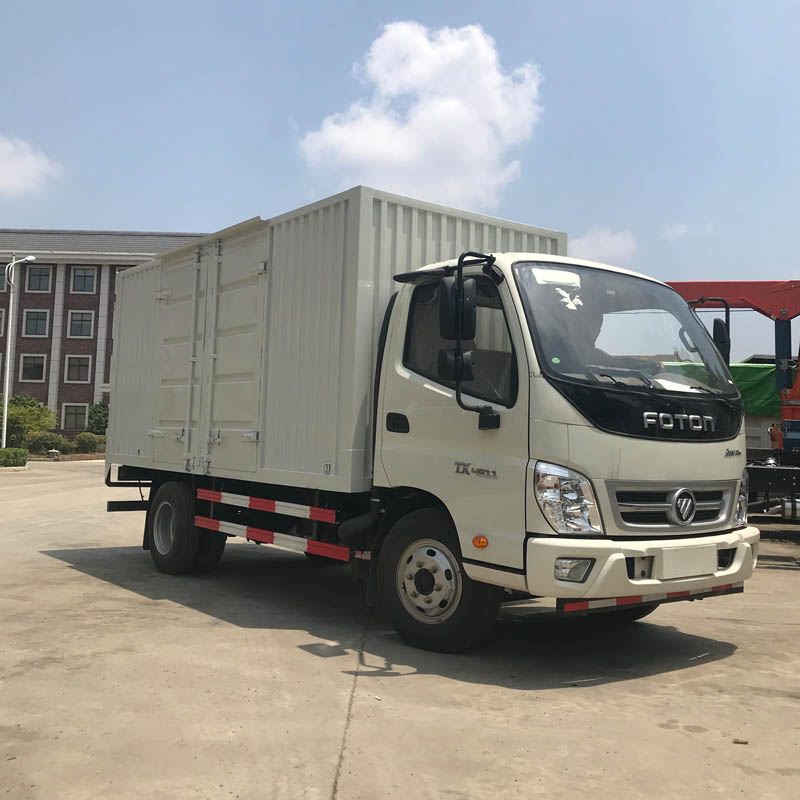

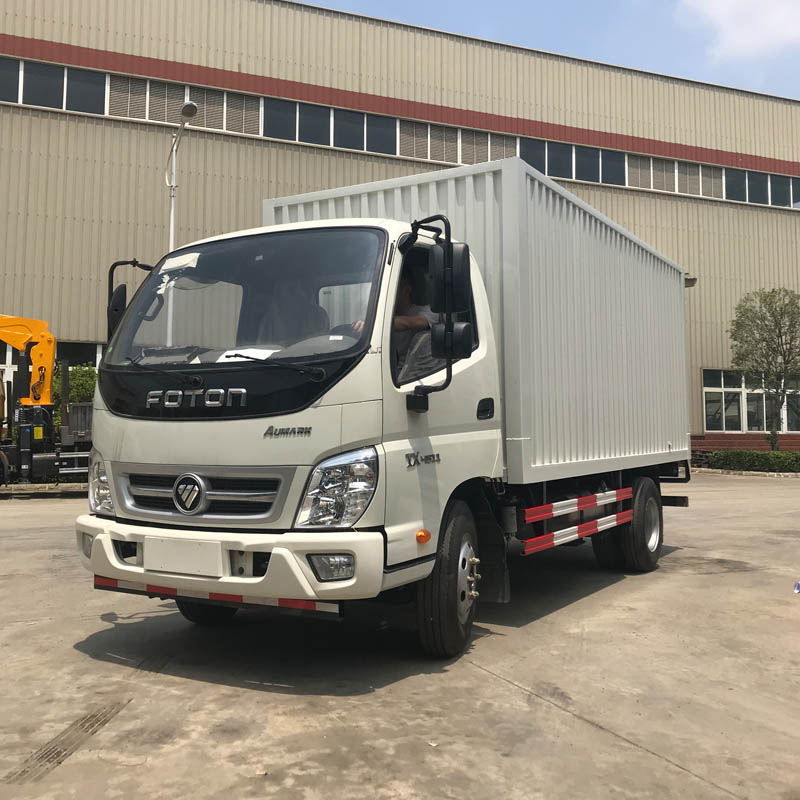

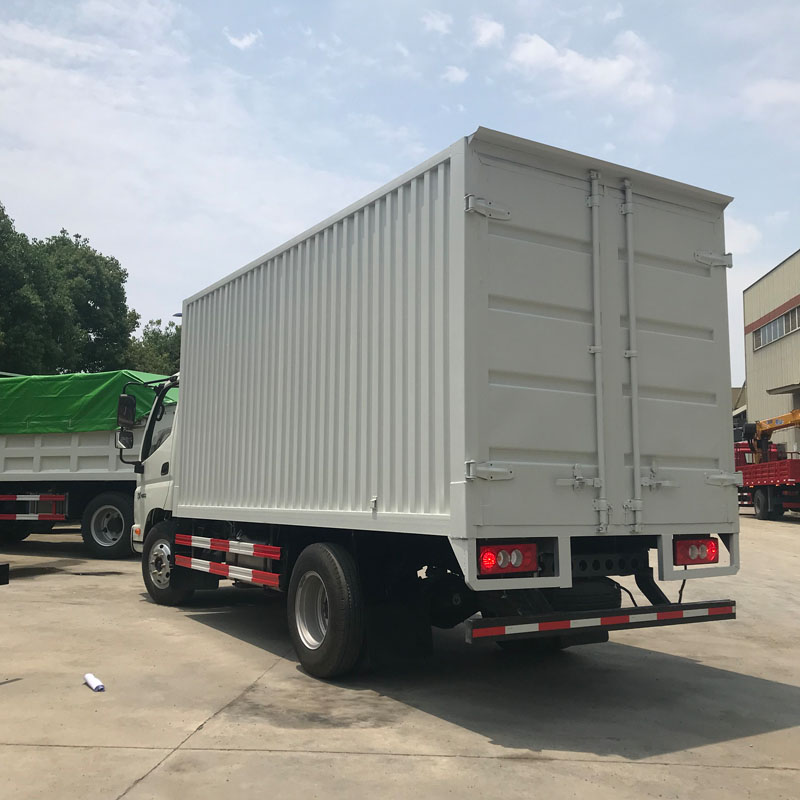

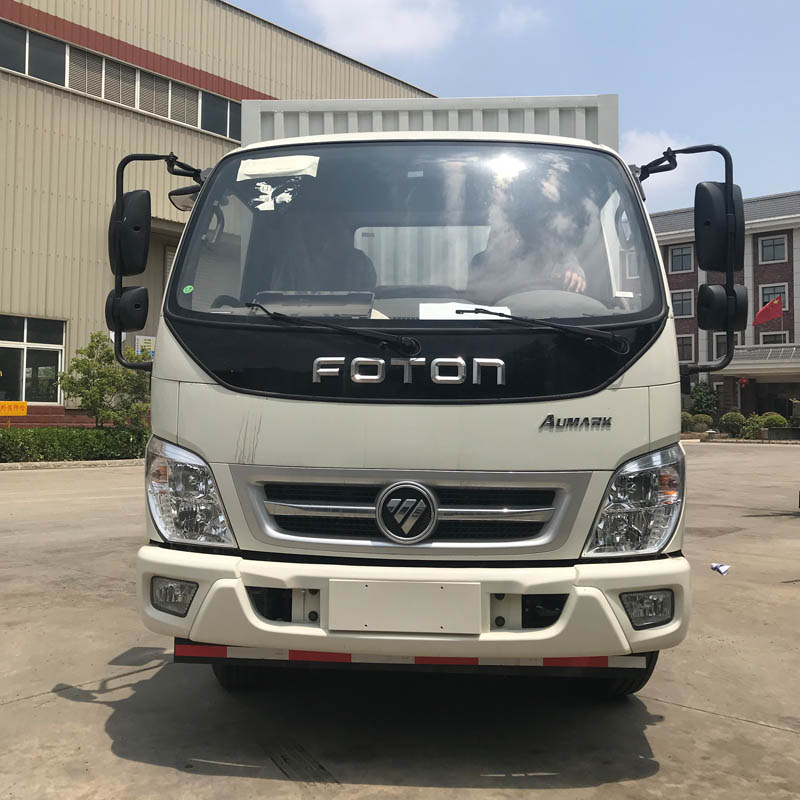

HLW5041XXYB van truck

Vehicle parameters

Vehicle Model

HLW5041XXYB

Vehicle Brand

HLW

Overall dimensions

6040X2000X3200mm

Curb weight

3320kg

Van dimensions

4230X1810X1800mm

Loading capacity

5tons

Chassis parameters

Chassis model

BJ1041V8JD6-S1

Chassis brand

FOTON

Overall dimensions

5975X1925X2230mm

Wheel base

3360mm

Front/rear wheel track

1530/1485mm

Front/rear suspension

1085/1175mm

Approach/departure angle

18/17°

Maximum speed

110km/h

Chassis Manufacturer

BEIQI FOTON MOTOR CO.,LTD

Cab

Configuration

L1800 sing row cab, allowable 2 passengers, with warm air, wind breaker.

Color

White, other color is optional

Engine

Model

4J28TC

Emission

Euro 4

Type

in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine

Rated power

110hp,rated power speed 3200rpm

Displacement

2771ml

Max.torque

280N.m

BoreX stroke

93X102mm

Manufacturer

Beiqi Futian Motor Company Limited

Tire

Size

7.00R16 steel wire tire

Number

6+1 nos

Front axle

2.2tons

Rear axle

5.0tons

Drive form

4X2

Rated voltage

24V,DC

Transmissions

5 speed forward 1 reverse

Steering device

Power assisted steering

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Upper structure parameters

Van dimensions

4230X1810X1800mm

Loading capacity

5tons

Van material

Corrugated iron tile

Side door

Two side doors

Color and Logo

Optional

Standard configuration

Chassis,sub frame,corrugated iron tile van body.
