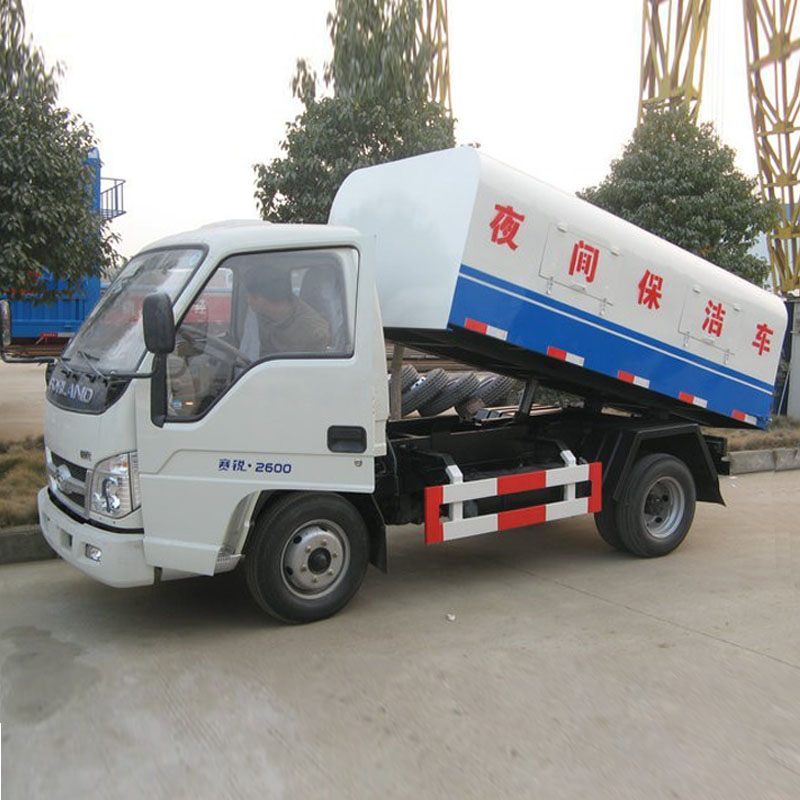

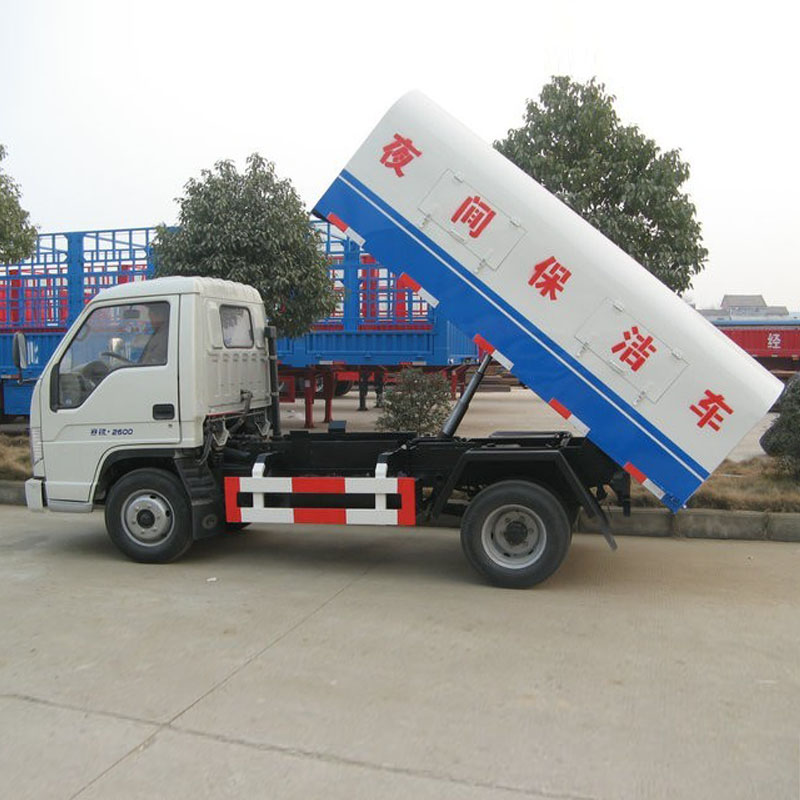

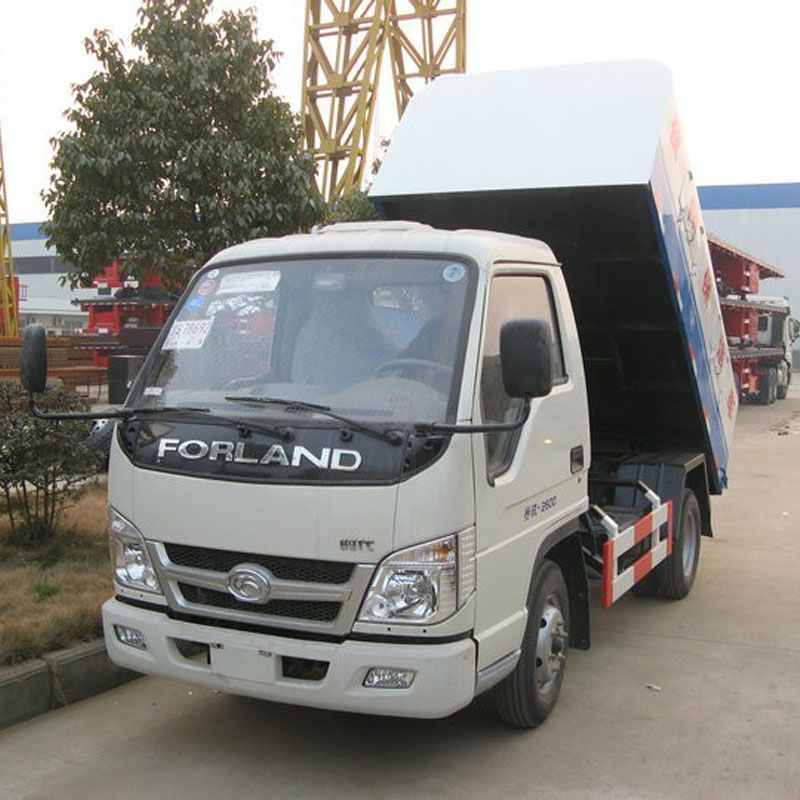

HLW5042ZLJB sealed garbage truck

Vehicle parameters

Vehicle Model

HLW5042ZLJB

Vehicle Brand

HLW

Overall dimensions

4985X1720X2080mm

Curb weight

2575kg

Garbage container dimensions

2800X1650X800mm

Garbage container volume

3.0m3

Chassis parameters

Chassis model

BJ1042V9JA2

Chassis brand

FOTON

Overall dimensions

4985x1690x2080mm

Wheel base

2600mm

Front/rear wheel track

1345/1240mm

Front/rear suspension

1115/1270mm

Approach/departure angle

18/20°

Maximum speed

95km/h

Chassis Manufacturer

BEIQI FOTON MOTOR CO.,LTD

Cab

Configuration

1560 single row cab,allowable 2 passengers,with warm air.

Color

White,other color is optional

Engine

Model

QC480ZLQ

Emission

Euro 1

Type

4 cylinders,in-line,turbo charger,diesel engine

Rated power

62hp

Displacement

1809ml

Bore x stroke

80x90mm

Manufacturer

Anhui Quan Chai Power Co., Ltd

Tire

Size

6.00-13 nylon tire

Number

6+1 nos

Fuel tank

70L iron oil tank

Rear axle

3.0 tons

Drive form

4X2

Rated voltage

Camel brand,24V,DC

Transmissions

5 speed forward 1 reverse

Steering device

Steering wheel

Steering wheel

Left hand drive

Selective configuration

Steel wire tire,air conditioner

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Upper structure parameters

Garbage container dimensions

2800X1650X800mm

Garbage container volume

3.0m3

Garbage container material

Carbon steel

Side wall

2.5mm

Bottom plate

3mm

Color and Logo

Optional

Standard configuration

Chassis,master cylinder,one garbage container.
