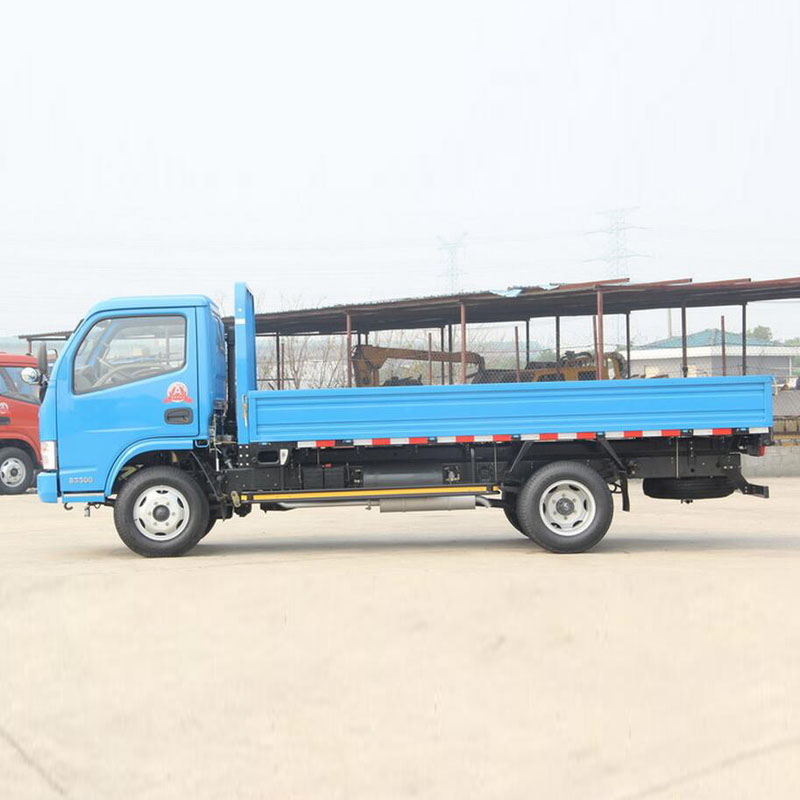

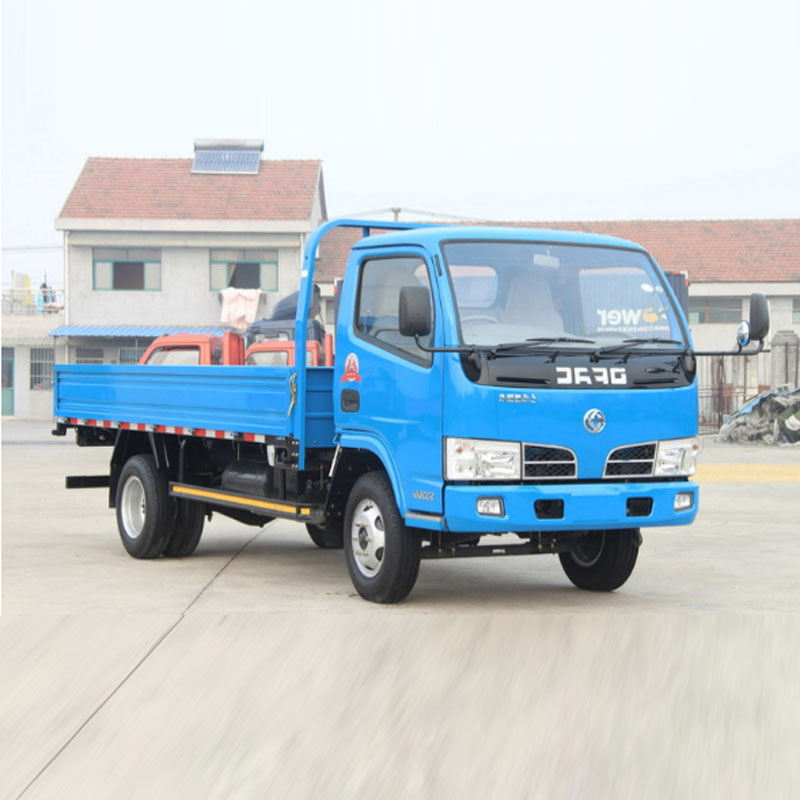

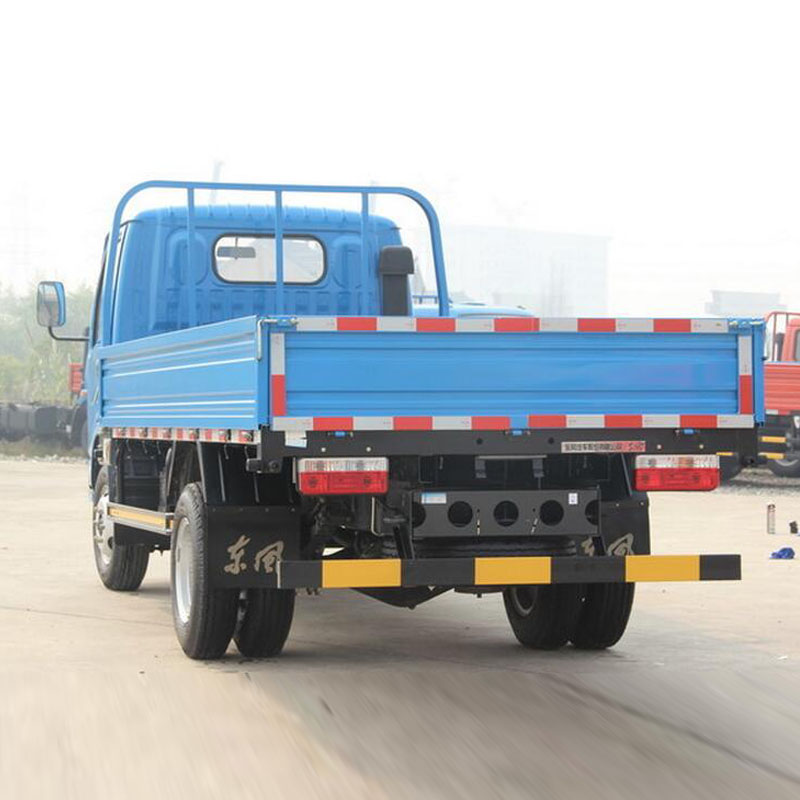

HLW5060E cargo truck

Vehicle parameters

Vehicle Model

HLW5060E

Vehicle Brand

DONGFENG

Overall dimensions

5850X2150X2200mm

Curb weight

3800kg

Van dimensions

4100X2000X550mm

Loading capacity

5000kg

Chassis parameters

Chassis model

EQ1060TJ20D3

Chassis brand

DONGFENG

Overall dimensions

5820x1940x2080mm

Wheel base

3300mm

Front/rear wheel track

1506/1466mm

Front/rear suspension

1032/1488mm

Approach/departure angle

19/15°

Maximum speed

95km/h

Chassis Manufacturer

Dongfeng Automobile Co.,Ltd

Cab

Configuration

Single row cab,air conditioner, allowable 3 passengers

Color

Blue,other color is optional

Engine

Model

CY4102-C3F

Emission

Euro 3

Type

in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

95hp,rated power speed 3200rpm

Displacement

3856ml

Bore x stroke

102x118mm

Manufacturer

Dongfeng Chaoyang Diesel Power Co. Ltd.

Tire

Size

7.00R16

Number

6+1 nos

Fuel tank

100L,steel

Front axle

2.0T

Rear axle

4.0T

Drive form

4X2

Rated voltage

24V,DC

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Upper structure parameters

Van dimensions

4100X2000X550mm

Loading capacity

5000kg

Van material

Corrugated iron tile

Color and Logo

Optional

Standard configuration

Chassis,sub frame,corrugated iron tile van body.
