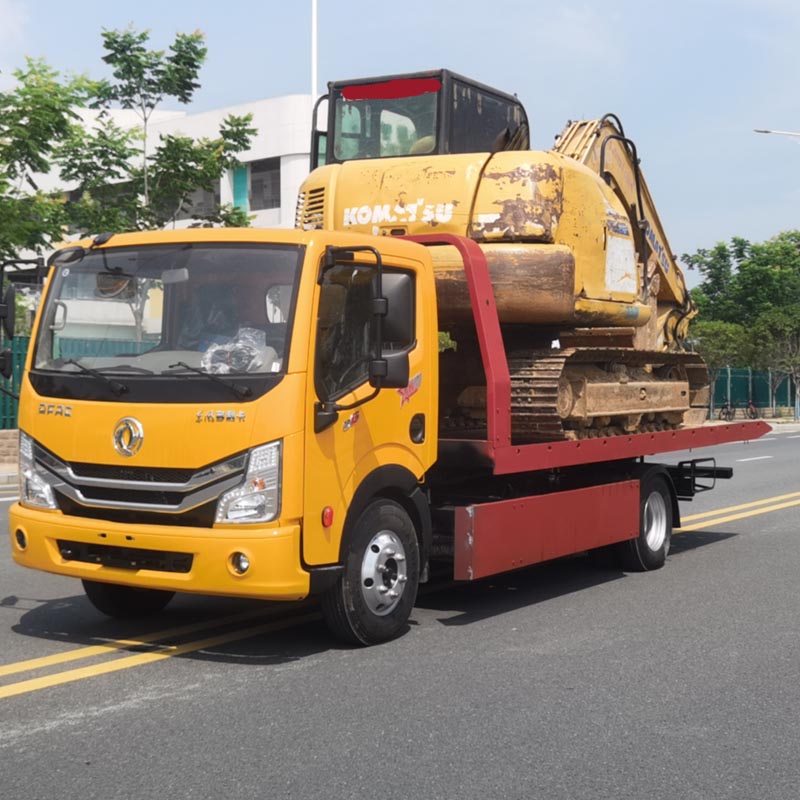

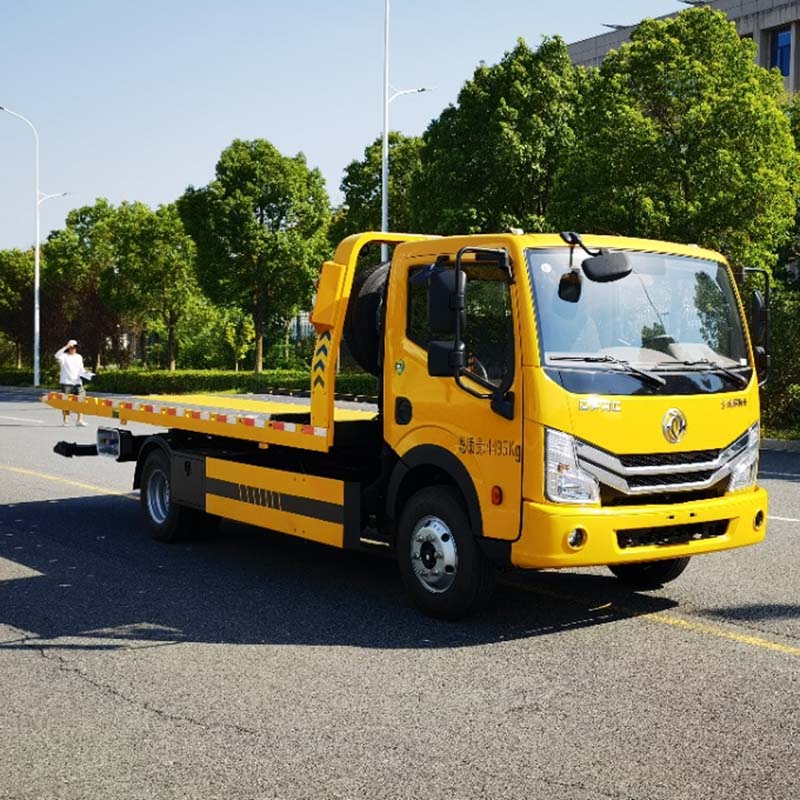

HLW5071TZQ016PBE WRECKER

Product name: HLW5071TZQ016PBE WRECKER

Category: Wrecker Truck

Brand Dongfeng DFAC

Wrecker 6000kg

Wheelbase 3600

4 ton hydraulic winch

Chassis parameters
Chassis model			EQ1090T9ADJ3AC	Chassis brand	DONGFENG
Overall dimensions			6695x2180x2350mm	Wheel base	3600mm
Front/rear wheel track			1750/1586mm	Front/rear suspension	1180/1715mm
Approach/departure angle			22/13°	Maximum speed	80km/h
Chassis Manufacturer			Dongfeng Automobile Co.,Ltd
Cab	Configuration		Standard configuration includes original factory air conditioning, multifunctional steering wheel, cruise control, central control lock, remote key, power windows, original factory power take-off switch (with solenoid valve), spare tire, and double-layer 5+4 straight-through frame.
	Color		White,other color is optional
Engine	Model		Q23-136E6
	Emission		Euro 6
	Type		4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
	Rated power		120hp,rated power speed 2800rpm
	Displacement		3856ml
	Bore x stroke		102x118mm
	Manufacturer		Dongfeng Chaoyang Diesel Power Co. Ltd.
Tire	Size		7.50R16,steel wire tire
	Number		6+1 nos
Frame	192mm
Brake	Air break, electronic flame out, exhaust brake
Fuel tank	100L,steel
Front axle	2.4T
Rear axle	4.2T
Drive form	4X2
Rated voltage	24V,DC
Transmissions	5 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
Selective configuration		Air Conditioner, Cummins engine B140 33(140hp)
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Wrecker structure parameters w
		Color and Logo	Optional
Standard configuration	The flatbed can carry a load of 5-6 tons, with a length of 5.6 meters and a width of 2.4 meters. It is equipped with 4mm thick checkered plates, a 110 main oil cylinder, and a 90 lifting oil cylinder. The flatbed adopts 4mm high-strength steel perforated plates and bilateral operating devices. All track auxiliary beams are thickened, reinforced, and densely arranged, truly achieving a solid heavy-duty flatbed! It is equipped with a 4-ton hydraulic winch (25-meter steel wire rope) and a 4-ton rear support arm. There is also 1 toolbox, 2 tire stops, 4 tie-down straps, and a set of auxiliary small wheels. The rest are configured according to the manufacturer's standard specifications.
Selective configuration	Hydraulic clamp (12T lever), electric saw (400WX2) with motor.

MOQ,payment terms,delivery terms,price
MOQ	One unit
Payment terms	T/T 30% down payment, 70% balance after inspection before delivery
Payment terms	L/C is optional
Inspection	Buyer's agent or third party inspection agency,the cost is paid by the buyer
Delivery term	20 days from down payment
Documentation	Maintenance manual
	User manual
	Packing list
	Commercial invoice
	Certificate of origin is optional
	Spare parts list for purchase is optional
Standard tools	With standard tools for chassis and wrecker structure
Packing	The main vehicle nude and covered with wax, attached parts and tools put into standard export box
