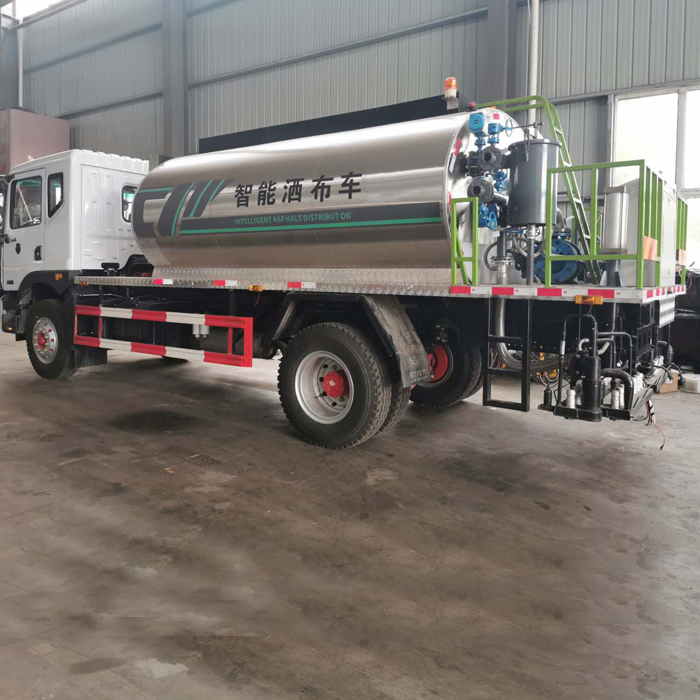

HLW5099GLQB Asphalt Distributor Truck

Vehicle parameters

Vehicle Model

HLW5099GLQB

Vehicle Brand

ZHONGQI LIWEI

Overall dimensions

8350X2550X3100mm

Curb weight

8500kg

Chassis parameters

Chassis brand

FOTON

Overall dimensions

7470x2250x2350mm

Wheel base

4200mm

Front/rear wheel track

1665/1615mm

Front/rear suspension

1365/2440mm

Approach/departure angle

20/10°

Maximum speed

95km/h

Chassis Manufacturer

Beijing Foton Motor Co., Ltd.

Cab

Configuration

A1995 single row cab, allowable 3 passengers, air conditioner

Color

White,other color is optional

Engine

Model

ISF3.8s3141

Emission

Euro III

Type

6 cylinders,in-line, 4-stroke,water-cooled, turbo inter-cooling, direct injection, dry cylinder liner, diesel engine,

Rated power

141hp,rated power speed 2600rpm

Displacement

3760ml

Max.torque

450N.m

Bore x stroke

102x115mm

Manufacturer

Beijing Foton Cummins Power Co., Ltd

Tire

Size

8.25R20 steel wire tire

Number

6+1 nos

Transmissions

6T120, 6 speed forward 1 reverse

Front axle

2.5 tons, 70/60x76x10mm

Rear axle

6.0 tons, 110x110x8mm

Frame

192x65x6mm

Brake

Air brake

Fuel tank

120L aluminum alloy

Drive form

4X2

Rated voltage

24V,DC

Steering device

Power assisted steering

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Asphalt distributor upper structure

Asphalt Pump

QGB680, high viscosity asphalt pump, 680 L/min

Hydraulic system

Manual reversing valve, hydraulic driving motor of asphalt pump 05-110-BD31

Control mode

Be controlled in the operating box of the rear working platform, 36 pieces of pneumatic control nozzles (one control one)

Heating mode

Thermal conductive oil automatic heating + burner G20 (Italy brand)

Spraying Width

4.5m (6m is optional)

Spraying value

0.25-3.5L/㎡

Gasoline generator

6KW

Spraying medium

Emulsified asphalt, hot asphalt, modified asphalt, etc.
