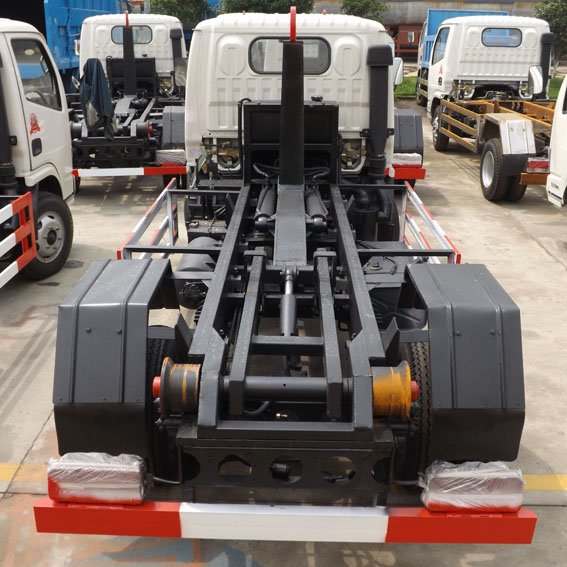

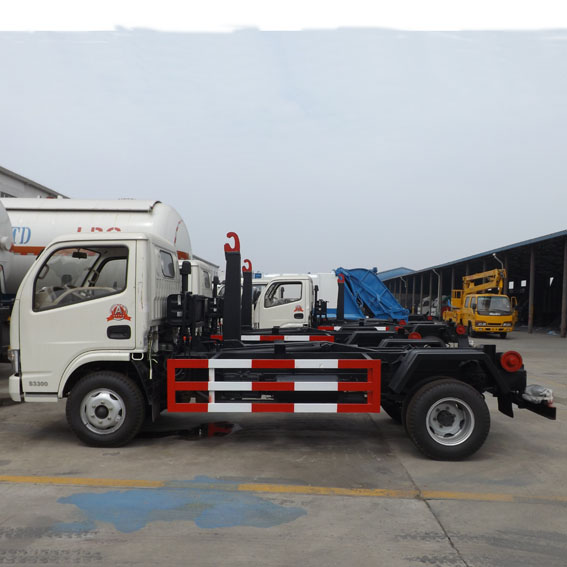

HLW5167ZXXS hook lift garbage truck

Main Specifications

Vehicle parameters

Vehicle model: HLW5167ZXXS hook lift garbage truck

Overall dimension(LxWxH): 7400x2490x3100mm

Curb weight: 7430kg

Chassis parameters

Chassis model:ZZ1167G4715D1R

Chassis brand:SINOTRUK

Overall dimensions:8445 X2330X2650mm

Wheel base:4700mm

Front/rear wheel track:1798/1764mm

Front/rear suspension:1240/2505mm

Approach/departure angle:27/26°

Maximum speed:95km/h

Chassis Manufacturer:China National Heavy Duty Truck Group Co.,Ltd

Cab Configuration:2080 a row and a half cab，allowable 3 passengers

Cab Color :White, other color is optional

Engine Model:YC4E160-33

Emission:Euro 3

Type:4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine

Rated power:160hp, rated power speed 2600rpm

Displacement:4257ml

Max.torque:600N.m

Bore x stroke:110x112mm

Manufacturer:Guangxi Yuchai Machinery Group Co., Ltd.

Tire Size :9.00R20

Tire Number:6+1 nos

Fuel tank:220L iron oil tank

Front axle:3.6 tons

Rear axle:10.5 tons

Drive form:4X2

Suspension:Multi leaf springs

Rated voltage:24V, DC

Transmissions:6 speed forward 1 reverse.

Steering device:Power assisted steering

Steering wheel :Right hand drive

Upper assembly

Garbage container dimensions：4000X2200X1300mm

Garbage container volume：10m3

Garbage container material：Carbon steel

Side wall：3mm

Bottom plate：4mm

Color and Logo：Optional

Standard configuration：master cylinder, sub frame, turnover frame, locking frame, lock cylinder, multiple valve,operating handle,one garbage container.Hydraulic cylinder: front lift, made in China.
