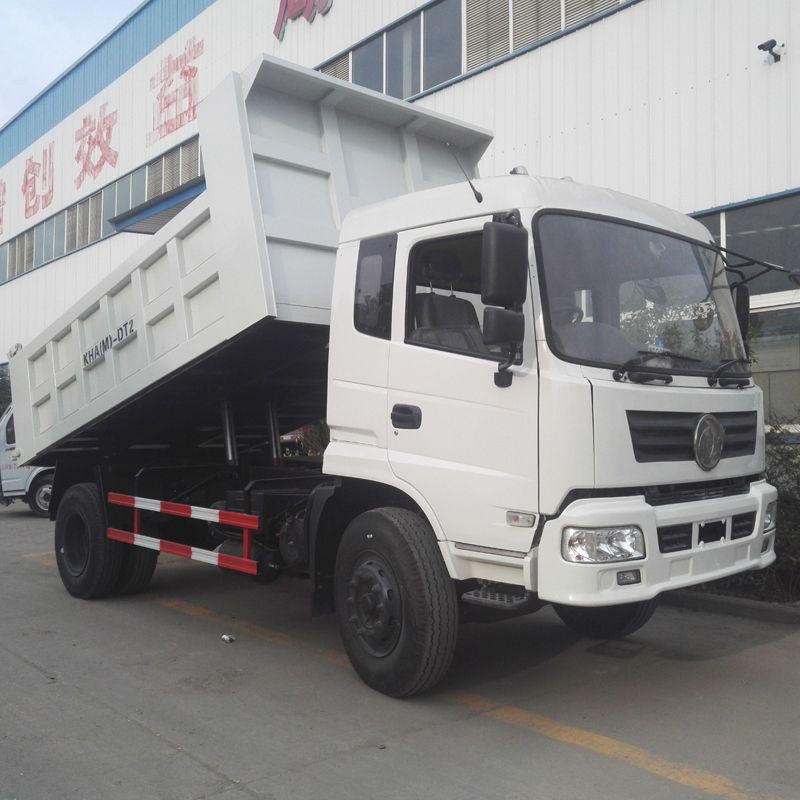

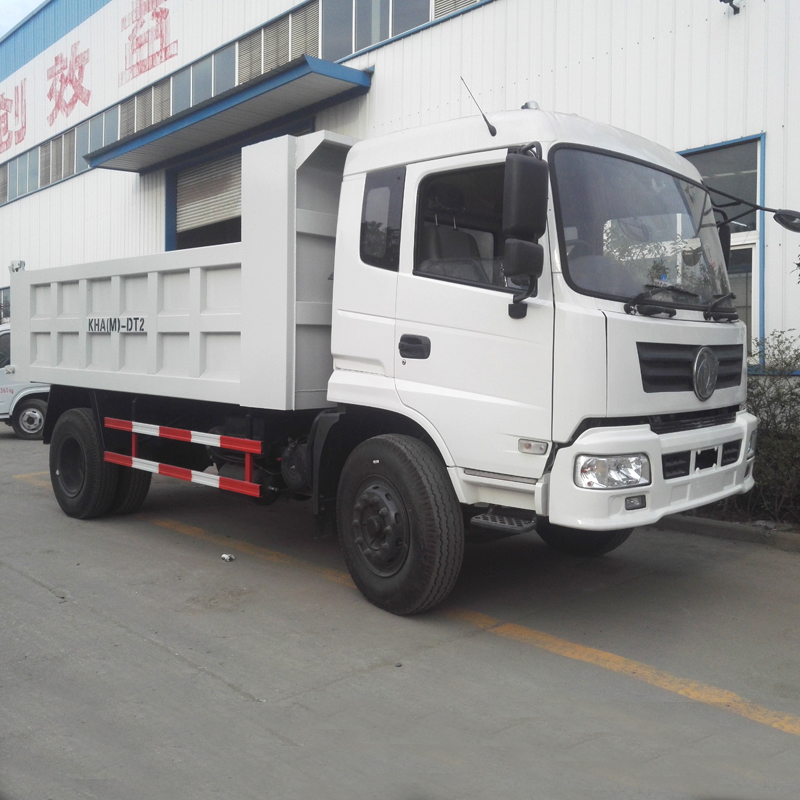

HLW3108E Dump truck

Vehicle parameters

Vehicle Model

HLW3108E

Loading capacity

15000kg

Overall dimensions

7170X2470X3180mm

Van dimensions

4500X2300X1000mm

Gross vehicle weight

11900kg

Curb weight

6505kg

Chassis parameters

Chassis model

EQ1108KJ

Chassis brand

DONGFENG

Overall dimensions

6975X2462X2690mm

Wheel base

3950mm

Front/rear wheel track

1940x1860mm

Front/rear suspension

1205/1895mm

Approach/departure angle

25/18°

Maximum speed

90km/h

Chassis Manufacturer

Dongfeng Motor Company

Cab

Configuration

A row and a half deluxe cab(with sleeping berth),allowable 3 passengers

Color

White,other color is optional

Engine

Model

B190 33

Emission

Euro 3

Type

6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

190hp,rated power speed 2500rpm

Displacement

5900ml

Max.torque

640N.m

Bore x stroke

102x120mm

Manufacturer

Dongfeng Cummins Engine Co., Ltd.

Tire

Size

900-20 nylon tire

Number

6+1 nos

Frame

250*80*(7+4)mm,parts are double layers.

Fuel tank

160L,steel

Front axle

3.6T

Rear axle

8.0T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

6 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive/ Right hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Dump truck structure parameters

Van body dimensions

4500X2300X1000mm

Side wall

4mm

Bottom plate

6mm

Van body material

Common steel

Lifting position

Middle

Dumping direction

Rear

Oil Cylinder

Domestic Ф220

Color and Logo

Optional

Standard configuration

Chassis, sub frame, van body side 4mm bottom 6mm,domestic middle lifting hydraulic cylinder Ф220,common steel, two longitudinal beams, rectangular van body, single door
